Spotlight Figura Z/05 ZS 500-650W zoom 14-33° DEMO
330019
14-33 ° zoom profile spot, 500 / 650W.

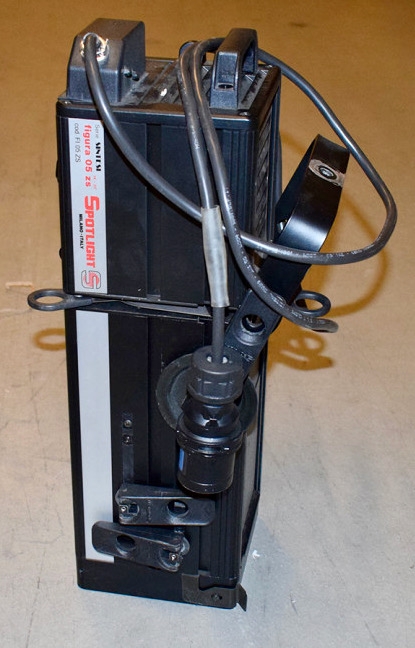

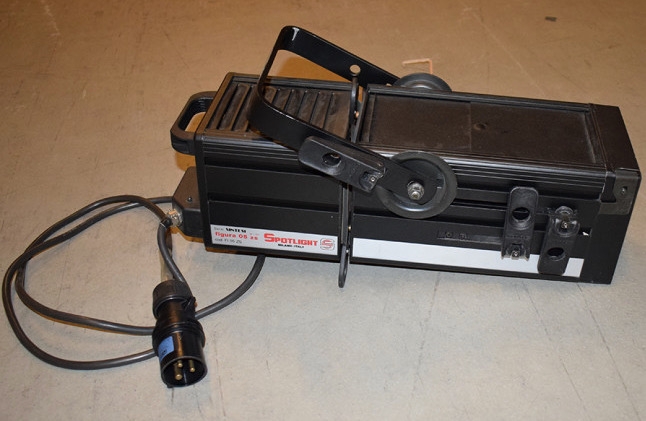

The lamps are made in a robust black lacquered aluminum and steel housing, with easy access to bulb replacement. The lamp has stepless zoom from 14 ° to 33 ° and is delivered as standard with 4 pcs. knives (framing shutters) and 2m access cable. In addition, a gobo holder can be mounted in the lamp.
Description
- PRODUCT CODE
- FI 05 ZS
- TYPE
- Family: Profile
- Line: Conventional line
- SOURCE
- Halogen
- CONNECTORS
- Cable without plug
- LAMP HOLDER
- GY9.5
- VOLTAGE
- 220-240V, 50-60Hz

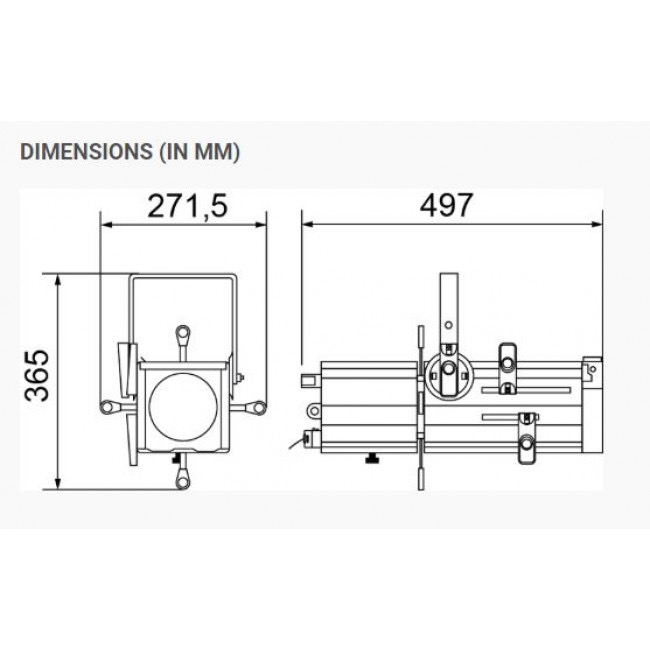

- DIMENSIONS
- Product
- Weight: 4.8 Kg
- Packaging
- Dimensions: 275mm x 275mm x 560mm
- Volume: 0.042 m3
- Pack weight: 5.7 Kg
TECHNICAL FEATURES
- Aluminum housing for high heat dissipation by natural ventilation
- Filter frame lockable top cover
- Yoke with clutch-locking system
- Adjustable yoke for fixture balancing
- Auto power-off by safety microswitch for maintenance and access into the lantern
- Easy access to the lamphouse for fast maintenance
- Adjustable lampholder position for proper LCL settings
- 99,99% polished and treated aluminum reflector
- PO version on request, with 2-way pole operation for tilt and pan
- ARC version on request, with 3-way DMX control of tilt, pan and iris diaphragm
Information
| Product use condition | Super, used but in very nice condition |
|---|---|
| Product warranty | 48 timer |
| Product age | 0-3 |
| Product Application Light | Profile and Spots |
| NS Brands | Spotlight Figura |
