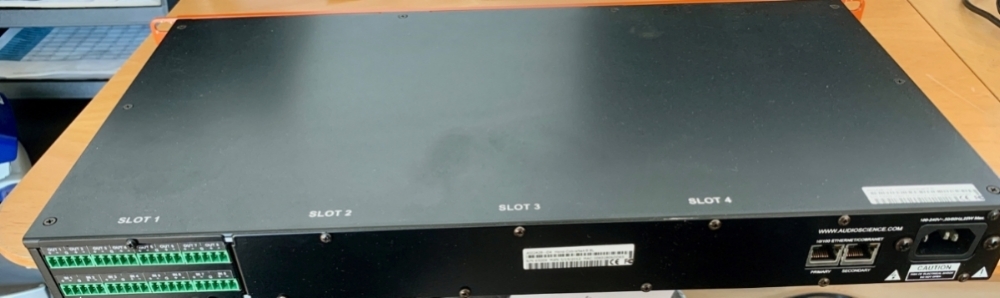

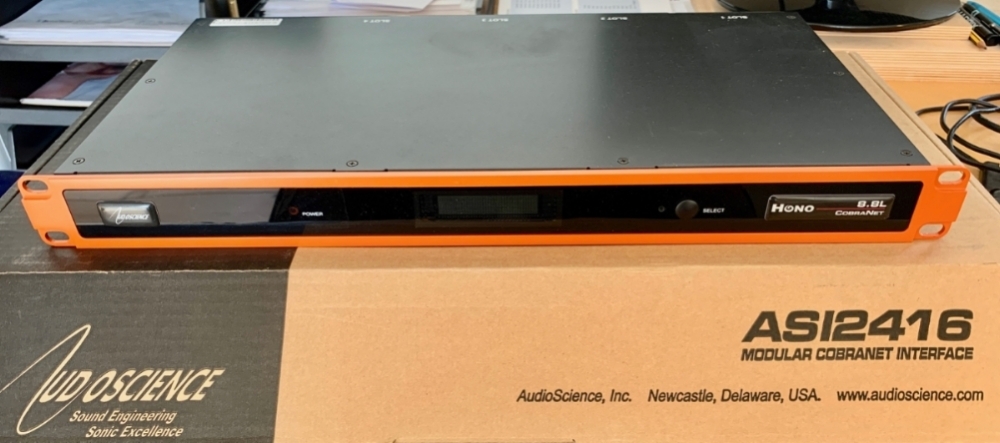

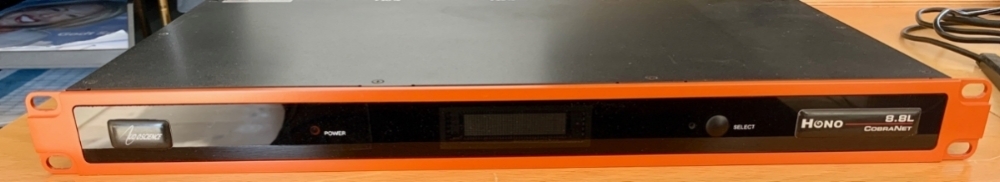

AudioScience HONO 8:8L Cobranet

1 DESCRIPTION

The Hono CobraNet 8.8L is a CobraNet interface designed for use in the professional installed sound market. This device receives up to 16 channels of CobraNet and sends them to 8 balanced analog audio outputs, while simultaneously inputting 8 channels of line level balanced audio and transmits them up to 16 channels of CobraNet.

The Hono CobraNet 8.8L has been purposely designed to compliment and fully integrate with all of today’s CobraNet compatible DSP products. In addition, this is the ideal solution for many situations where a project requires numerous channels of digital audio routed throughout a facility, but doesn’t require a dedicated DSP processor.

2 FEATURES

Inputs

Eight balanced analog line level
Software adjustable, non-volatile, input levels from –10 to +24dBu
24bit analog-to-digital and converters: 105dB SNR and 0.0015% THD+N
Pluggable terminal block connectors (Phoenix style)

Outputs

Eight balanced analog line outputs
Software adjustable, non-volatile output levels from -10 to +24dBu
Pluggable terminal block connectors (Phoenix style)

CobraNet

Redundant CobraNet
Sixteen channels of CobraNet in and out
Four CobraNet transmitters and eight receivers

DSP

Peak and RMS meters on all audio inputs and outputs
Mixing of any input to any output

Power

Built-in 90-260VAC power supply

Chassis

1U rack-mount unit
1 RU, 19”(482mm) W x 8”(203mm) L x 1.75”(44mm) H

Control

All settings adjustable from ASIControl software
